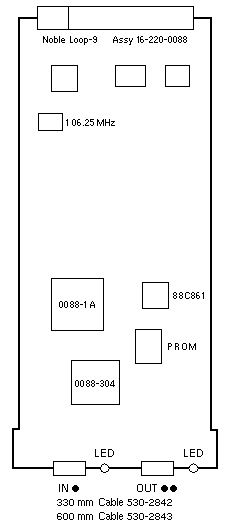

Interconnect Card

<a href="../../Systems/SupportHeaders/FIBRE_T3_Intcnct_Card.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

375-0085

Notes

Interconnect Card 1 controls Drives 4 to 9.
Interconnect Card 2 controls Drives 1 to 3 and the cache mirror.
Cache mirroring is disabled when Interconnect Card 2 fails.

References

T3 Installation, Operation, and Service Manual, 806-1062.
