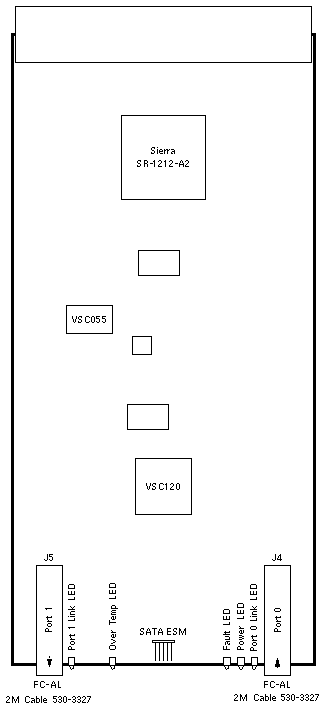

SATA Expansion I/O Module

StorEdge CSM100

Option XTACSM1-IOM-SA

375-3219
LSI Logic Assembly P11488
MAC Addr 00:A0:B8:nn:nn:nn

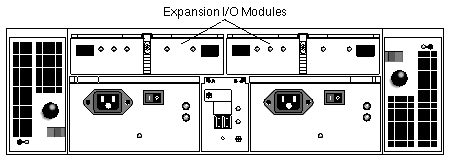

SATA Expansion Tray (Rear View)

Note: The I/O Modules are installed upside down in the Expansion Tray.

StorEdge 5310 Codename: Mustang
StorEdge 6130 Codename: Treefrog Sophomore

Notes

  1. Ports on the sheetmetal canister are labeled FC-AL with In and Out arrows.

References

  1. Sun StorEdge 6130 Array Documentation.
