RAID Controller

<a href="../../Systems/SupportHeaders/FIBRE_6130_RAID_Controller.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Option XTA6130-CTRL-FC

375-3216	375-3233

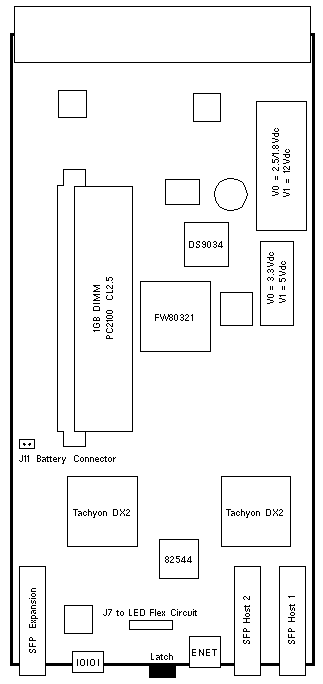

RAID Controller w Battery 370-6931 LSI Logic Assembly P12843 MAC Addr 00:A0:B8:nn:nn:nn	RAID Controller FRU w/o Battery 370-6931

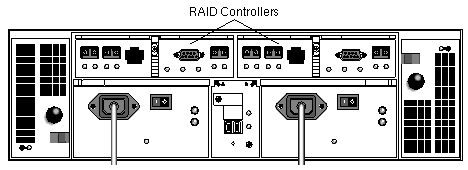

Installed Controllers (Rear View)

Note: The RAID controllers are installed upside down in the chassis.

StorEdge 5310 Codename: Mustang
StorEdge 6130 Codename: Treefrog Sophomore

Notes

The 4V, 3.2Ah Battery is fastened to the inside of the bottom cover.

References

Sun StorEdge 6130 Array Documentation.
