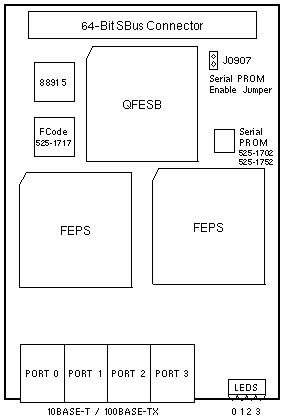

Sun Quad FastEthernet 1.0 (SQFE/S)

Codename: Quattro

Option 1042

501-4302

Notes

1. The minimum OS is Solaris 2.4 and Quad FastEthernet 1.0.
2. QFE/S 1.0 uses the SUNWhmed device driver.
3. QFE/S is not compatible with Sun Trunking 1.0.
4. The SS1000 and SC2000 require OBP 2.26.
5. One CPU per port is recommended for maximum throughput.
6. Two CPUs per QFE/S is recommended for >=200MHz systems.
7. SQFE <= 501-4302-03 fails the Fcode checksum test and will not configure during boot if the E3000-E6000 is set to Diagnostic mode. Set Keywitch diagnostics Off, OBP diag-switch? false, and OBP diag-level min.
8. Set the NVRAM variable local-mac-address? to true to enable the MAC addresses of the network interfaces on the Quad FastEthernet board.

References

1. Sun Quad FastEthernet SBus Adapter Documentation.
