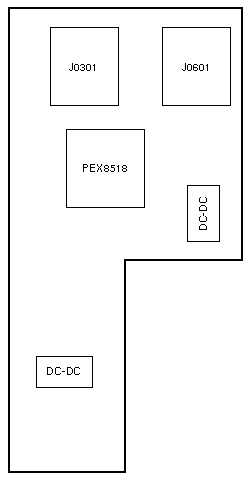

Pass-Through FEM

Codename: Hunter (aka GP+)

Options X4263A
Options X4263A-N

373-0315

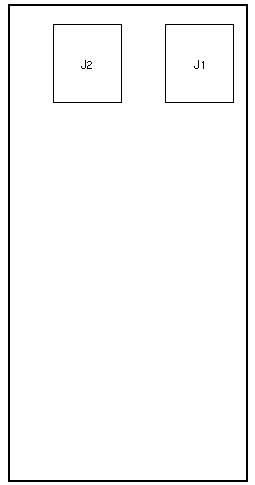

Double-Wide FEM

Additional Information & Views

Notes

1. The codename GP+ means Gemini+ and Pegasus+.
2. Option 4263A does not include documentation.

10Gigabit Ethernet (10GbE) Connectivity Matrix

Notes

1. Option X4681A does not include documentation.
2. Sun Blade X6450 requires BIOS 3B19 and ILOM 2.0.3.10-r39810.
3. Sun Blade X6450 requires 375-3601-02 with resistor R803/R804 changes made in January 2009. (WO_40272)
   These changes were not made to X6450 375-3564.

10Gigabit Ethernet (10GbE) Connectivity Matrix

Notes

1. Option X4835A does not include documentation.
2. Sun Blade T6320 requires Patch 142151.
   Sun Blade T6340 requires Patch 142152.

T6320 Notes

1. Service Processor 501-7822 was not updated with FPGA code that allows programming the T6320 system board CPLD with Patch 142151.
2. T6320 Service Processor 510-1170-06 includes updated FPGA code that allows programming the T6320 system board CPLD with Patch 142151.
3. T6320 system board 501-7842 does not include CPLD 520-3983-02 (142151-01).
4. T6320 system board 501-7842 does not include CPLD 520-3983-03 (142151-02).
5. T6320 system board 511-1327 includes CPLD 520-3983-02 (142151-01).
6. T6320 system board 511-1327 does not include CPLD 520-3983-03 (142151-02).

10Gigabit Ethernet (10GbE) Connectivity Matrix

References

1. Sun Blade T63X0 PCIe Pass-Through Fabric Expansion Module Documentation.
