18GB Solid-State Drive

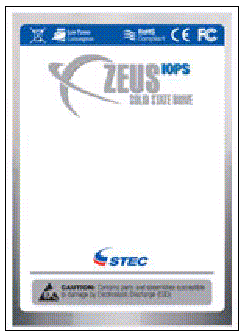

Stec Z16IZD3C-18UC-SUN

3 1/2" Solid State Serial Attached SCSI 3.0Gb/Sec

Option DS2X-LOGZ
Option XTA7720-LOGZ

371-4820 542-0286 542-0357 7015704 7018446
Stec Inc ZeusIOPS J4410 FRU
Stingray Bracket 350-1508
DS2X-LOGZ		 Coral Bracket FRU
Bracket 350-1386
XTA7720-LOGZ		 Stingray Bracket FRU
Bracket 350-1508
DS2X-LOGZ		 Coral Bracket FRU
Bracket 350-1386
XTA7720-LOGZ
7309526 7309527
Stec Inc ZeusIOPS
Oracle Logzilla
2nd Generation
No Specification		 Stingray Bracket FRU
Bracket 350-1508

Notes

  1. Drive 371-4820 was released and added to assembly 542-0286 in January 2010. (WO_42582)
  2. Assembly 542-0357 with 371-4820 was released April 2010. (WO_42809)
  3. Assembly 7015704 with 371-4820 was released March 2011. (E0001995)
  4. Assembly 7018446 with 371-4820 was released in May 2011. (E0004058)
  5. Assembly 7309527 with 7309526 was released in March 2015. (E0024328)

Bracket Screw Notes

  1. Assembly 542-0286-01 uses clear zink screw 240-7237-02 with 4.4mm of threads.
  2. Assembly 542-0286-02 uses black zink screw 240-7642-01 with 3.1mm of threads.
  3. Assembly 542-0357-01 uses clear zink screw 240-7237-01 with 4.4mm of threads.
  4. Assembly 542-0357-02 uses black zink screw 240-7642-01 with 3.1mm of threads.
  5. The longer screw may cause difficulty inserting the bracket into the drive slot.
