Western Digital WD800BB (80.0GB)

3 1/2" 7200 RPM Ultra ATA/100

Options 9217 / 9222 / 9224

370-7367	540-6212
Caviar	Option 9217/9222/9224 W1100z Assy/FRU

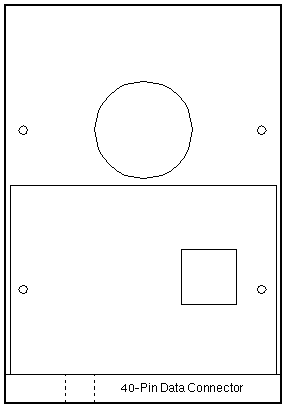

Bottom View End View

Notes

1. W1100z disk drive bays are numbered 1 to 5 from top to bottom.
2. Install W1100z drives rightside up in disk drive bays 2 and 4.
3. Drive orientation illustrated on W1100z service label 266-6550-10 is upside down.
4. Option 9222A is configured with Java Desktop System Release 2 for Solaris 9 x86.
5. Option 9224A is configured with Java Desktop System Release 2 for Linux.
