1.6TB Solid-State Drive
SanDisk LB1606R

2 1/2" Solid State Serial Attached SCSI 6.0Gb/Sec

7045914 7046052 7078599 7087183
SanDisk Everest
Oracle Readzilla
T10 PI Type 1		 Marlin Bracket FRU
15mm Bkt 541-2123
Option 7104204
Pkg FRU 7046053 [I]
Pkg FRU 7086439 		Evo Bracket FRU
2.5" Bracket 7044311
6-Pack Option 7107742
Pkg FRU 7088348 [I]
Pkg FRU 7086439 		Common Bracket FRU
Assembly 7046052
2.5" Bracket 7044311
Pkg FRU 7086439

Notes

  1. Drive 7045914 was released in June 2013. (E0012750)
  2. Drive 7045914 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
  3. Assembly 7046052 with 7045914 was released in June 2013. (E0012750)
  4. Packaged FRU 7046053 was replaced by 7086439 in March 2014. (E0017902)
  5. Assembly 7078599 with 7045914 was released in March 2014. (E0017902)
  6. Assembly 7087183 includes SSD Assembly 7046052, Bracket 7044311, and Screws.
  7. Assembly 7087183 is used to replace SSD Assembly 7046052 and 7078599.
  8. Assembly 7046052 or 7087183 is used to replace SSD Assembly 7046052.
  9. Assembly 7087183 is used to replace SSD Assembly 7078599.
  10. Use Bracket Installation Guide 7087210 to install Bracket 7044311.

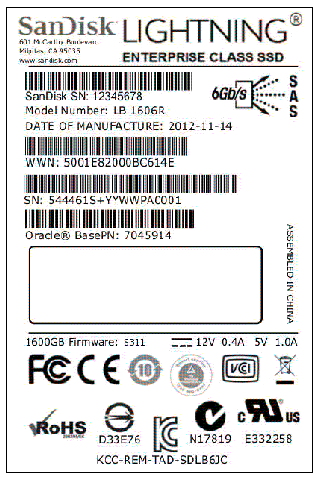

  11. The SanDisk model number on the serial number label is LB1606R.
  12. The Sun model number is not included on the serial number label.
  13. The Product Identification in SCSI Inquiry bytes 16-31 is LB1606R  SUN1.6T
    (hex 4c 42 31 36 30 36 52 20 20 53 55 4e 31 2e 36 54).
