3.2TB Solid-State Drive
HGST HUSMR3232ASS200

2 1/2" Solid State Serial Attached SCSI 12.0GB/Sec

7337004 7337005 7342453
HGST Bearcove
Read Intensive
T10 PI Type 1
Specification 7336979		 Marlin Bracket Assy
15mm Bracket 541-2123		 Coral-Dory Bracket Assy
2.5" Adapter 7042920
3.5" Bracket 7050989
or 3.5" Bracket 7343235
Left Bracket 7042923
7350504 7350507
Evo Bracket Assy
2.5" Bracket 7044311		 Heron Bracket Assy
2.5" Adapter 7096030
3.5" Bracket 7096032

Notes

  1. Drive 7337004 was released in January 2017. (E0031147)
  2. Drive 7337004 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
  3. Raw NAND Capacity is 4608GB. The drive is Over-Provisioned by 44%.
    Over-Provision formula 4608GB-3200GB/3200GB = 0.44.
  4. Assemblies 7337005 and 7342453 with 7337004 were released in January 2017. (E0031147)
  5. Assemblies 7350504 and 7350507 with 7337004 were released in July 2017. (E0035583)

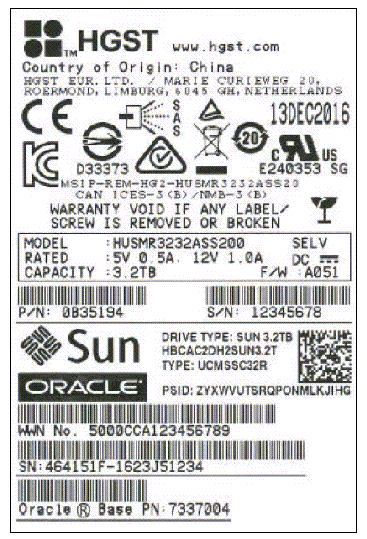

  6. The HGST model number on the serial number label is HUSMR3232ASS200.
  7. The Oracle model number on the serial number label is HBCAC2DH2SUN3.2T.
  8. The Product Identification in SCSI Inquiry bytes 16-31 is HBCAC2DH2SUN3.2T.
