3.2TB Solid-State Drive
HGST HUSMR3232ASS201

2 1/2" Solid State Serial Attached SCSI 12.0GB/Sec

7342259 7342260 7350500
HGST Bearcove
Read Intensive
T10 PI Type 1
Trusted Computing Group
Specification 7337023		 Marlin Bracket Assy
15mm Bracket 541-2123		 Evo Bracket Assy
2.5" Bracket 7044311

Notes

  1. Drive 7342259 was released in January 2017. (E0031147)
  2. Drive 7342259 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
  3. Raw NAND Capacity is 4608GB. The drive is Over-Provisioned by 44%.
    Over-Provision formula 4608GB-3200GB/3200GB = 0.44.
  4. Assembly 7342260 with 7342259 was released in January 2017. (E0031147)
  5. Assembly 7350500 with 7342259 was released in July 2017. (E0035543)

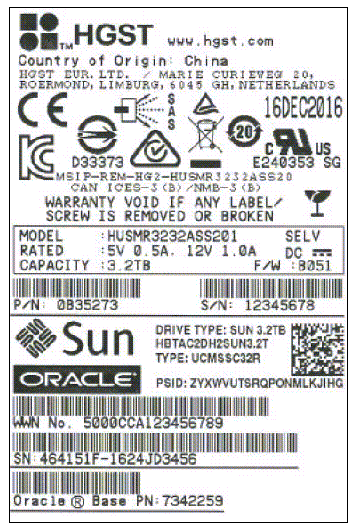

  6. The HGST model number on the serial number label is HUSMR3232ASS201.
  7. The Oracle model number on the serial number label is HBTAC2DH2SUN3.2T.
  8. The Product Identification in SCSI Inquiry bytes 16-31 is HBTAC2DH2SUN3.2T.
