200GB Solid-State Drive
HGST HUSMH4020ASS210

2 1/2" Solid State Serial Attached SCSI 12.0Gb/Sec

7336973 7342451 7342452
HGST Bearcove
Write Intensive
T10 PI Type 1
Specification 7336974		 Marlin Bracket Assy
15mm Bkt 541-2123		 Coral-Dory Bracket Assy
2.5" Adapter 7042920
3.5" Bracket 7050989
or 3.5" Bracket 7343235
Left Bracket 7042923
7350578 7350580 7350582
Evo Bracket Assy
2.5" Bracket 7044311		 Heron Bracket Assy
2.5" Adapter 7096030
3.5" Bracket 7044392
3.5" Bracket 7096032		 Stingray-Dory Bracket Assy
2.5" Adapter 7042920
3.5" Bracket 7042926
Left Bracket 7042923

Notes

  1. Drive 7336973 was released in January 2017. (E0031147)
  2. Drive 7336973 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
  3. Raw NAND Capacity is 768GB. The drive is Over-Provisioned by 284%.
    Over-Provision formula 768GB-200GB/200GB = 2.84.
  4. Assemblies 7342451 and 7342452 with 7336973 were released in January 2017. (E0031147)
  5. Assemblies 7350578, 7350580 and 7350582 with 7336973 were released in July 2017. (E0035583)

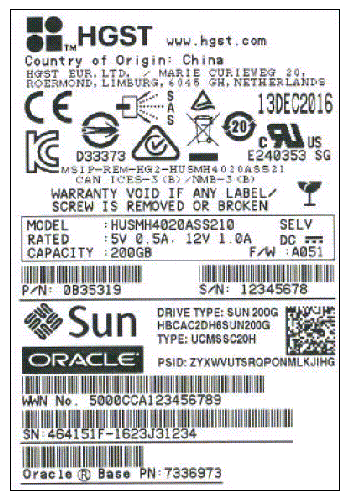

  6. The HGST model number on the serial number label is HUSMH4020ASS210.
  7. The Oracle model number on the serial number label is HBCAC2DH6SUN200G.
  8. The Product Identification in SCSI Inquiry bytes 16-31 is HBCAC2DH6SUN200G.
