200GB Solid-State Drive
HGST HUSMM1640ASS200

2 1/2" Solid State Serial Attached SCSI 12.0Gb/Sec

7093646 7094120 7094126
Sunset Cove Plus
High Endurance
T10 PI Type 1		 Heron Bracket FRU
2.5" Adapter 7096030
3.5" Bracket 7044392
3.5" Bracket 7096032		 Evo Bracket FRU
2.5" Bracket 7044311
7309938 7309941 7313033 7341616
Stingray-Dory Bracket FRU
2.5" Adapter 7042920
3.5" Bracket 7042926
Left Bracket 7042923		 Coral-Dory Bracket FRU
2.5" Bracket 7042920
3.5" Bracket 7050989
Left Bracket 7042923		 Marlin Bracket FRU
15mm Bracket 541-2123		 Coral-Dory Bracket FRU
2.5" Bracket 7042920
3.5" Bracket 7050989
or 3.5" Bracket 7343235
Left Bracket 7042923

Notes

  1. Drive 7093646 was released in August 2014. (E0019833)
  2. Drive 7093646 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
  3. Raw NAND Capacity is 592GB. The drive is over-Provisioned by 196%.
  4. Assembly 7094126 with 7093646 was released in August 2014. (E0020893)
  5. Assembly 7094120 with 7093646 was released in September 2014. (M0010192)
  6. Assembly 7094126 with 7093646 was released in August 2014. (E0020893)
  7. Assemblies 7309938 and 7309941 with 7093646 were released in April 2015. (E0024496)
  8. Assembly 7313003 with 7093646 was released in August 2015. (M0012487)
  9. Assembly 7341616 with 7093646 was released in April 2015. (E0024496)
  10. Assembly 7313033, a HW Buy, was replaced by 7341616, a HW Make.

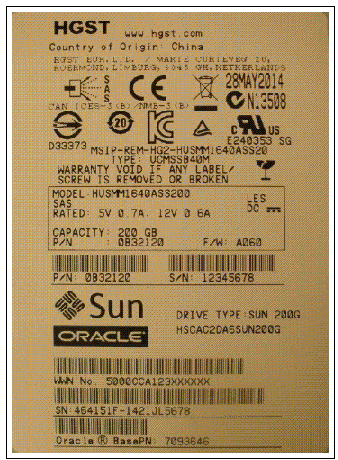

  11. The HGST model number on the serial number label is HUSMM1640ASS200.
  12. The Oracle model number on the serial number label is HSCAC2DA6SUN200G.
  13. The Product Identification in SCSI Inquiry bytes 16-31 is HSCAC2DA6SUN200G.
