1.6TB Solid-State Drive
HGST HUSMR1616ASS200

2 1/2" Solid State Serial Attached SCSI 12.0Gb/Sec

7094629 7097377 7097382
Sunset Cove Plus
Read Intensive
T10 PI Type 1		 Marlin Bracket Assy
15mm Bkt 541-2123
Option 7104204		 Evo Bracket Assy
2.5" Bracket 7044311
no PTO option
7097385 7308416 7313040 7341618
Common Bracket FRU
SSD Assembly 7097377
15mm Bracket 541-2123
(includes 2.5" Bracket 7044311)		 Heron Bracket Assy
2.5" Adapter 7096030
3.5" Bracket 7096032		 Coral-Dory Bracket FRU
2.5" Adapter 7042920
3.5" Bracket 7050989
Left Bracket 7042923		 Coral-Dory Bracket FRU
2.5" Adapter 7042920
3.5" Bracket 7050989
or 3.5" Bracket 7343235
Left Bracket 7042923

Notes

  1. Drive 7094629 was released in October 2014. (M0010366)
  2. Drive 7094629 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
  3. Raw NAND Capacity is 1792GB. The drive is Over-Provisioned by 12%.
  4. Assemblies 7097377, 7097382 and 7097385 with drive 7094629 were released in October 2014. (M0010366)
  5. Assembly 7097385 includes SSD Assembly 7097377 (with Bracket 541-2123), Bracket 7044311, and Screws.
  6. Assembly 7097385 is used to replace SSD Assemblies 7097377 and 7097382.
  7. Assembly 7313040 with 7094629 was released in August 2015. (M0012487)
  8. Assembly 7308416 with 7094629 was released in September 2015. (E0026763)
  9. Assembly 7341618 with 7094629 was released in October 2016. (E0032517)
  10. Assembly 7308416, a HW Buy, was replaced by 7341618, a HW Buy.

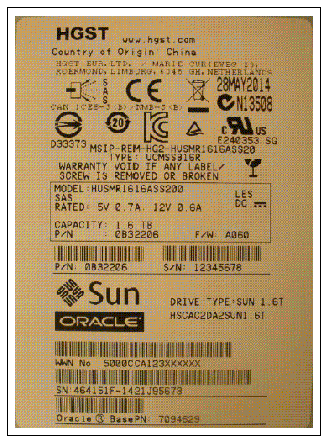

  11. The HGST model number on the serial number label is HUSMR1616ASS200.
  12. The Oracle model number on the serial number label is HSCAC2DA2SUN1.6T.
  13. The Product Identification in SCSI Inquiry bytes 16-31 is HSCAC2DA2SUN1.6T.
