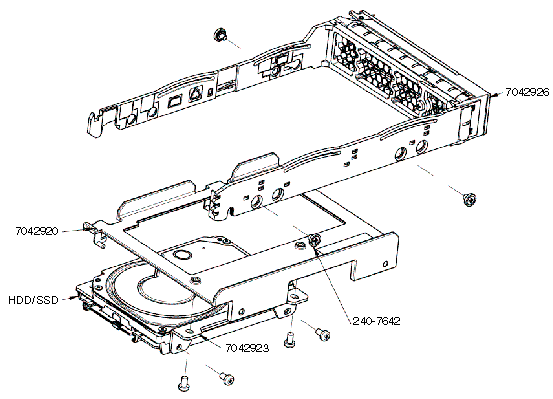

Stingray-Dory Bracket

7042920 7042923 7042926
2.5" Adapter
June 2012
(M0004668) 		Left Bracket
June 2012
(M0004668) 		3.5" Bracket
June 2012
(M0004668)

Notes

  1. The Stingray-Dory Bracket adapts a 2.5" HDD or SSD for use in a 3.5" drive bay.
  2. The Stingray-Dory Bracket does not have an assembly part number.
  3. Deviation D0003061 in April 2014 allowed the use of Lightpipes that were out of allignment.
    Drives with these Lightpipes have status lights that are difficult to read.
