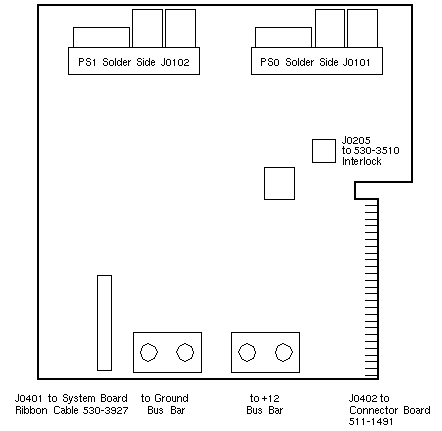

DC Power Distribution Board

Sun Fire X4170 M2 Codename: Lynx+ (Thelma) Oracle Exadata X2-2 Codename: EX2-2 (Plus) Oracle Exadata X2-8 Codename: EX2-8 (Plus-Plus) Sun ZFS Storage 7320 Codename: Amber Road (Maguro+)

Notes

1. The Bus Bar screws include captive washers.
2. The screw that fastens the PDB to the Chassis does not include a captive washer.
3. Remove the X4170 M2 System Board and both Power Supplies before removing
   the Power Distribution Board.

References

1. Sun Fire X4170 M2 Server Documentation.
