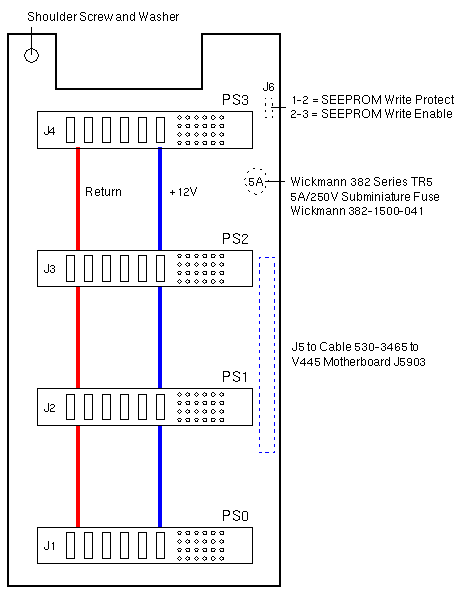

DC Power Distribution Board

<a href="../../Systems/SupportHeaders/DCPOWER_V445_PowerDistrBd.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

375-3302

Sun Fire V445 Codename: Boston

Notes

A 5A fuse provides circuit protection on the 3.3V standby output
The 5A fuse is replaceable, but has no Sun part number.
