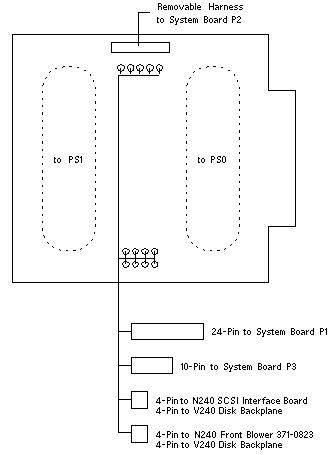

DC Power Distribution Board

Sun Fire V240 Codename: Enchilada 2U Netra 240 Codename: Enchilada 19

Notes

1. The wire harness does not have a Sun part number.
2. The 4-Pin, 10-Pin, and 24-Pin wire harnesses are soldered and bundled with tie wraps.
3. The 4-Pin harnesses require a 13 mm grommet in the Sun Fire V240 chassis.
4. The grommet does not have a Sun part number.
5. The 371-0821 was replaced by 371-3028 in the Netra 240 in June 2007. (WO_36859)
6. The 371-3028 includes shorter cables than 371-0821, and cannot be used in the Sun Fire V240.

Netra 240 Front Blower Notes

1. Blower 371-0823-01 has two 3-Pin connectors for I2C.
2. Blower 371-0823-01 has one 4-Pin connector for Power.
3. Netra 240 Service Manual 817-2699-13 does not include removal and replacement
   procedures for Blower 370-6124-02 or 371-0823-01.
