Tyco A200
320 Watt Power Supply
| 300-1736 |
Type A200
AC Input Power Supply |

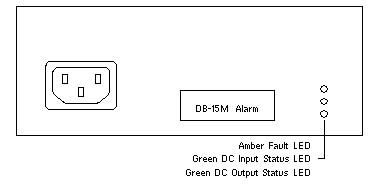

| Front View |
 |
|

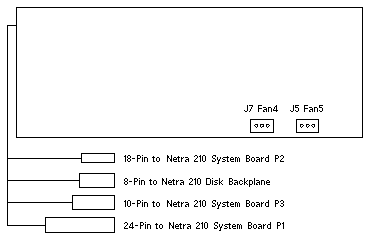

| Rear View |
 |
AC Input
| 90-264Vac |
47-63Hz |
4.9A RMS at 100Vac |
DC Output
| +3.3V |
+5V |
+12V |
-12V |
+5Vsb |
Fan4 |
Fan5 |
| 14A |
13A |
19A |
0.2A |
1A |
0.7A |
0.7A |
|
Netra 210 Codename: Salsa 19 |
Notes
- Remove Fan 4 and Fan 5, then remove the Power Supply.
- The AC input Power Supply label rating is 100-240Vac.
- The combined output of +3.3 and +5 can not exceed 77 Watts.
- The combined output of +3.3, +5, and +12 can not exceed 300 Watts.
- Fan4 output at J7 is from 8Vdc in Normal mode to 12Vdc in Maximum mode.
- Fan5 output at J5 is from 8Vdc in Normal mode to 12Vdc in Maximum mode.
- It is the manufacturer's option to enable Fan4/Fan5 operation
in Standby mode.
- The exact location and orientation of the AC input connector is unknown.
|
