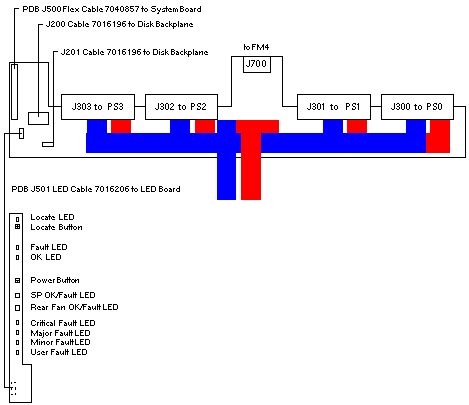

DC Power Distribution Board

Netra T4-2 Codename: Lisbon

Notes

1. Two 341-6884 Busbar Fastener Plates attach the System Board to the PDB Busbars.
2. The PDB includes cable 7040857.
3. The LED Board includes cable 7016206. The cable is not customer replaceable.
4. The Backplane includes cables 7016196, 7016210, 7016212, 7016215, and 7017969.
5. The PDB is the second most difficult part to service in the Netra SPARC T4-2.
   It requires removal and replacement of PCI Express Cards, XAUI Cards, Memory
   Risers, Front Fans, Rear Fan, Power Supplies, System Board, PDB to System Board
   Flex Cable, Backplane to System Board DVD Cable, SAS 0-3 Cable, SAS 4-7 Cable,
   PDB to Backplane Power Cable, PDB to Backplane Signal Cable, and PDB to LED
   Board Cable.

References

1. Netra SPARC T4-2 Server Documentation
