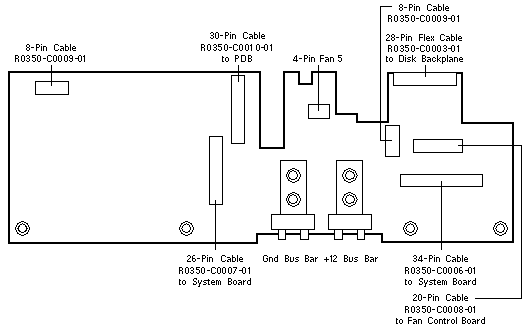

Signal Interface Board

<a href="../../Systems/SupportHeaders/DCPOWER_Netra_T3_1_Signal_InterfaceBd.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-4939

Assy R0350-F0035
PCB R0350-G0005-04

Notes

The FRU includes cables R0350-C0003-01, R0350-C0006-01, R0350-C0007-07,
R0350-C0008-01, R0350-C0009-01 (x2), and R0350-C0010-01.
Ribbon Cables R0350-C0006, R0350-C0007, and R0350-C0008 are not labeled.
Cable R0350-C0010 is not labeled.
The cables are not assigned Sun/Oracle part numbers.

References

Signal Interface Board

<a href="../../Systems/SupportHeaders/DCPOWER_Netra_T3_1_Signal_InterfaceBd_SH_ANCHOR_7070187.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7070187

Notes

The FRU includes cables 7069532, 7069533, 7069534, 7069539, 7069540 (x2), and 7069541.
Two 7069540 cables are used. One connects the Signal Board to the Fan Board and the other
connects the Signal Board to the PCI Mezzanine.

References

Netra SPARC T4-1 Server Documentation.
