DC Power Distribution Board

<a href="../../Systems/SupportHeaders/DCPOWER_Netra_S7_2_PowerDistr_Bd.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7309654 7311510

DC Distributioon Board DC Distribution Assembly
DC PDB 7309654
Blue Busbar 7332424
Red Busbar 7332425

Front View

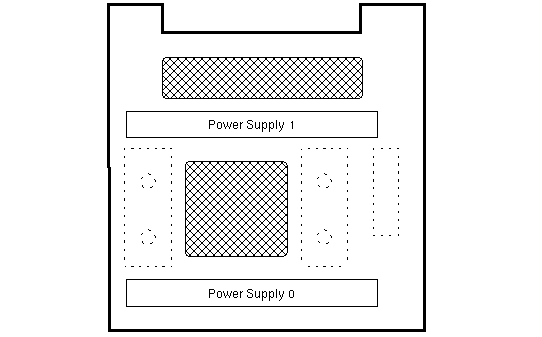

Rear View
