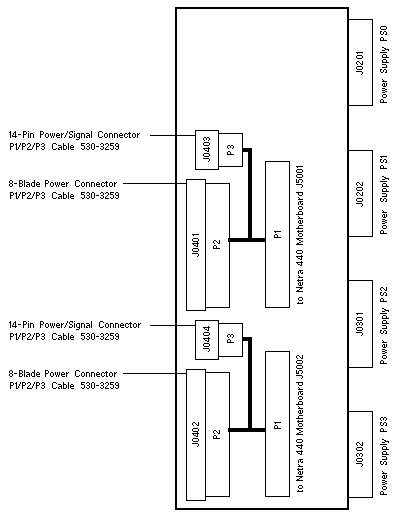

DC Power Distribution Board

<a href="../../Systems/SupportHeaders/DCPOWER_Netra440_PowerDistrBd.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-6552 540-5854

Board Assembly/CRU

Netra 440 Codename: Chalupa 19

Notes

The PDB is not hot swappable. Disconnect all input power before removing the PDB.
The PDB Assembly/FRU includes Bracket 540-6103, Cover 341-0024, PDB 501-6552, and two 530-3259 Power/Signal Cables.
