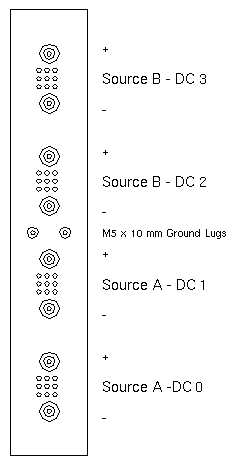

DC Input Module

Sun Fire V1280 Codename: Lightweight 8

Notes

1. DC Input Source A provides power to PS0 and PS1.
2. DC Input Source B provides power to PS2 and PS3.
3. Use power HYLUG connector YA6C-L1-90, 130-5146.
4. Use ground HYLUG connector YAV6C-L2TC10-FX-90, 130-5147.
5. Connectors 130-5146 and 130-5147 require #6 AWG wire.
6. Connectors are sourced from Framatome Connectors International.
7. Burndy mechanical crimping tool MD7-34R or equivalent is required.

References

1. Sun Fire V1280/Netra 1280 Systems Service Manual, 817-0510.
2. Sun Fire V1280/Netra 1280 System Administration Guide, 817-0509.
3. Sun Fire V1280/Netra 1280 Systems Site Planning Guide, 817-3333.
4. Sun Fire V1280/Netra 1280 Systems Installation Guide, 817-3334.
