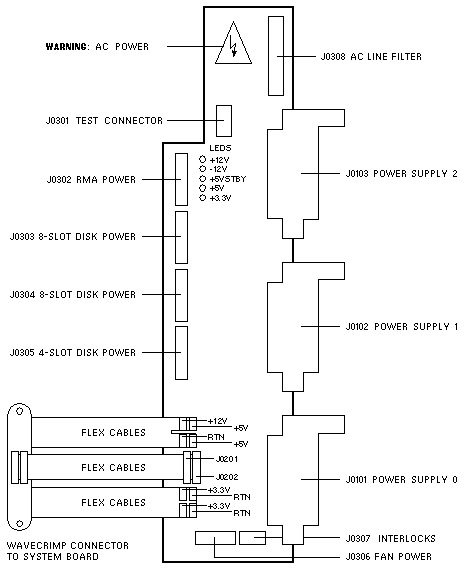

DC Power Distribution Board

<a href="../../Systems/SupportHeaders/DCPOWER_E450_Pwr_Distr_Bd.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-3100

System Codenames

System	Codename
Ultra 450	Tazmo
Enterprise 450	Tazmax

Notes

The upper and lower flex cables are soldered to the board.
Carefully fold the flex cables to avoid solder joint damage.
