Delta D258
| |||||||||||||||||||||||||||
| 7331588 |
|---|
|
DC Input Power Supply Specification 7092861 Drawing 7092862 UL 60950-1 2nd Edition EN 60950-1 2nd Edition |

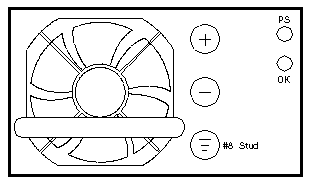

| Front View |
 |
| -48Vdc/-60Vdc Nominal | -40Vdc Minimum | -72Vdc maximum |
| +12.0V | 75A at -40Vdc | 900W |
| +12.0V | 100A at -48Vdc | 1200W |
| +12.0Vsb | 3.0A | 36W |
| -53Vdc | 5% Load | 85.0% Efficiency |
| 10% Load | 87.0% Efficiency | |
| 20% Load | 90.0% Efficiency | |
| 50% Load | 94.0% Efficiency | |
| 100% Load | 91.0% Efficiency |
| | | |
|
