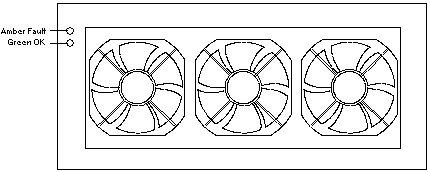

Delta A254
7100 Watt Power Supply

7070758 7074835
Type A254 (B1.2)
AC Input Power Supply
Specification 7022694
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition 		Type A254 (B2)
AC Input Power Supply
Specification 7022694
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition
7074836 7305956 7321272
Type A254 (B2.1)
AC Input Power Supply
Specification 7022694
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition 		Type A254 (B2.2)
AC Input Power Supply
Specification 7022694
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition
Conformal Coated 		Type A254 (B2.3)
AC Input Power Supply
Specification 7022694
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition
Conformal Coated

AC Input

200-480Vac 3-Phase 50-60Hz 24A Max

DC Output

+12.2V 583A 7100W

Efficiency and Power Factor

200-240V 5% Load 76.0% Efficiency Power Factor 0.9/0.5/0.4 @ 200/400/480VAC
10% Load 83.0% Efficiency Power Factor 0.9/0.75/0.6 @ 200/400/480VAC
20% Load 91.0% Efficiency Power Factor 0.95/0.91/0.8 @ 200/400/480VAC
50% Load 92.5% Efficiency Power Factor 0.98/0.97/0.95 @ 200/400/480VAC
100% Load 90.0% Efficiency Power Factor 0.98/0.98/0.98 @ 200/400/480VAC
400-480V 5% Load 78.0% Efficiency Power Factor 0.9/0.5/0.4 @ 200/400/480VAC
10% Load 84.0% Efficiency Power Factor 0.9/0.75/0.6 @ 200/400/480VAC
20% Load 91.0% Efficiency Power Factor 0.95/0.91/0.8 @ 200/400/480VAC
50% Load 94.0% Efficiency Power Factor 0.98/0.97/0.95 @ 200/400/480VAC
100% Load 92.0% Efficiency Power Factor 0.98/0.98/0.98 @ 200/400/480VAC

Notes

  1. Power Supply Efficiency affects the current draw in AC
    Watts from the branch circuit. As efficiency increases,
    the current draw in AC Watts decreases.
  2. To calculate maximum theoretical current draw in AC Watts,
    multiply the maximum power supply output in DC Watts by
    the reciprocal of the power supply efficiency.
  3. Theoretical values are typically higher than published values
    which are based on measured outputs under controlled test
    conditions.
  4. Power Supplies 7070758 and 7074835 were updated to 7074836. (GSAP 6221)
  5. Power Supply 7074836 is updated to 7305956. (GSAP TBD)
