Delta DPS-525
525 Watt Power Supply

<a href="../../Systems/SupportHeaders/DCPOWER_Delta_4375_525W.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-4375

AC Input Power Supply
No Specification

AC Input

100-240Vac

7.54A Max

50-60Hz

DC Output

+12V	+20.0V
35.42A	5.0A

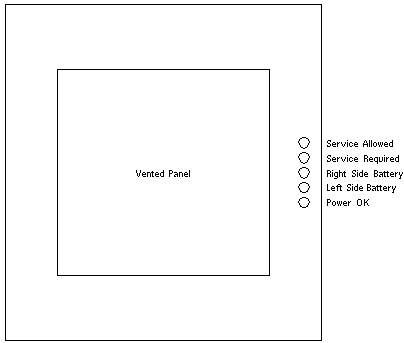

Battery LED Notes

Steady Green indicates that the battery is fully charged.
Blinking Green indicates that the battery is charging.
Off indicates that the battery is discharged, off, or removed.
