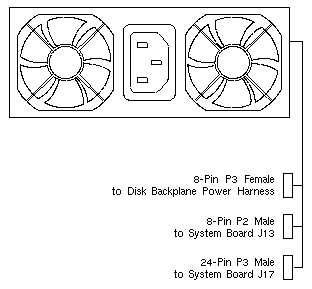

Delta DPS-450HB
450 Watt Power Supply

300-2003
AC Input Power Supply


AC Input

100-127Vac 50-60Hz 8.0A
200-240Vac 50-60Hz 4.0A

DC Output

+3.3V +5V -12V +12V1 +12V2 +12V3 +3.3Vsb
16.0A 12.0A 0.5A 13.0A 13.0A 10.0A 2.0A

Sun Fire X2200 M2 Codename: Taurus

Notes

  1. The combined output of +3.3V and +5V is 90 Watts.
  2. The power supply includes four non-replaceable fans.
  3. The clamp attaching the power supply to the chassis has no Sun part number.
