Brocade 700/1000 Watt Power Supply

370-5451

Delta Electronics
Model DPS-1001AB-1
Brocade P/N 23-0000006-02
AC Input Power Supply

<a href="../../Systems/SupportHeaders/DCPOWER_Brocade_5451_700W.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

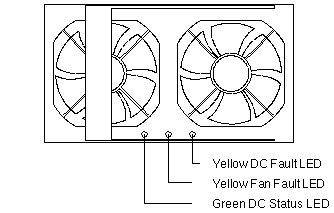

Front View

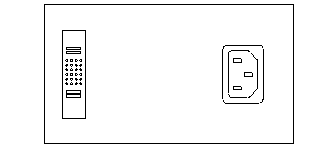

Rear View

AC Input

100-120V	50/60Hz	10A	700 Watt
200-240V	50/60Hz	7A	1000 Watt

700 Watt DC Output

+48V	+12Vsb
13.5A	4.0A	696W

1000 Watt DC Output

+48V	+12Vsb
19.8A	4.0A	998W
