Astec AA23880L
200 Watt Power Supply

InfiniBand 9-Port Switch

300-1650
Type A188
AC Input Power Supply

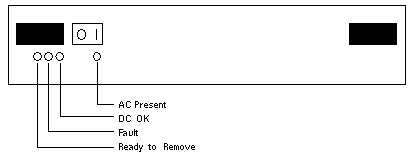

Front View

Rear View

AC Input

100-240Vac 3.5A-1.45A 50-60Hz

DC Output

+12V
16.7A

InfiniBand 9-Port Switch Codename: Sleipnir

Notes

  1. Dual AC input is required for both Power Supplies to load share.
  2. Loss of AC Input to a single Power Supply illuminates the Front Bezel fault LED, Rear Panel fault LED, and the Power Supply Fault LED.
