Artesyn 22911600
4000 Watt Power Supply

300-1413
Type A141
AC Input Power Supply
Specification 950-3245
March 2001

AC Input

200 - 240V 47 - 63Hz 24 Amps RMS at 200Vac Maximum
Operating Range 180-264Vrms 47-63Hz

DC Output

+48V 87A

Notes

  1. This Power Supply weighs 19.5 Kilograms (43 Lbs).

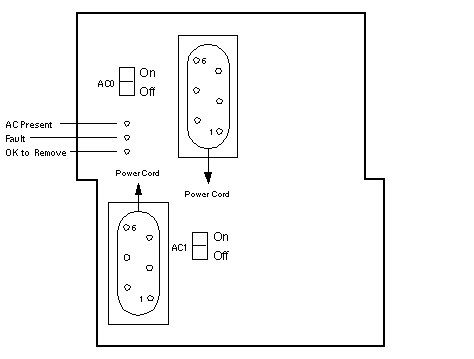

  2. Front Power Supplies are labeled PS0, PS1, and PS2 from right to left.
  3. Rear Power Supplies are labeled PS3, PS4, and PS5 from right to left.
  4. There is a different part number for the upper and lower power cord.
