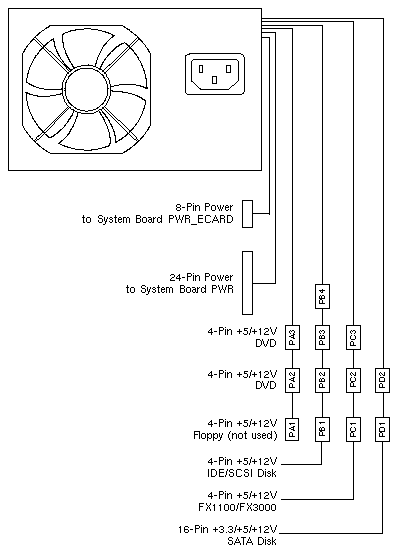

Acbel API4FS06
| ||||||||||||||||||||||
| 370-6807 |
|---|
| AC Input Power Supply |
| 90-132Vrms | 10A | 57-63Hz |
| 180-264Vrms | 5A | 47-53Hz |
| +3.3V | +5V | +12V1 | +12V2 | +12V3 | +5sb | -12 |
| 22A | 26A | 17A | 16A | 8.0A | 3.0A | 1.0A |
| | | |
|
