Service Processor

<a href="../../Systems/SupportHeaders/COMM_X4500_Svc_Proc.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-7383 541-0597 541-2963

FAB 270-6979
Service Processor
Flash 525-2245 Assembly/FRU
501-7160 + 501-7383 Assembly/FRU
501-7383 + 511-1045

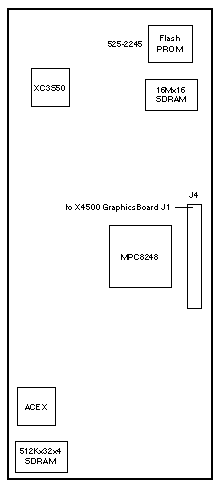

Top Side View

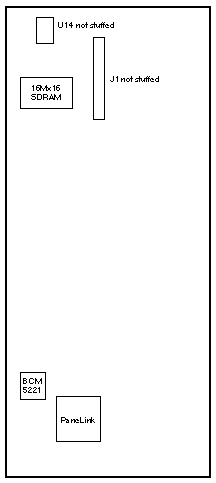

Bottom Side View

Sun Fire X4500 Codename: Thumper

Notes

Install the Graphics and Service Processor Assembly in X4500 Slot 3.
FRU 541-0597 includes Graphics Board 501-7160 and Service Processor 501-7383.
FRU 541-2963 includes Graphics Board 511-1045 and Service Processor 501-7383.

References

Sun Fire X4500/X4540 Server Documentation
