Service Processor

501-7288
FAB 270-7130

Top Side View

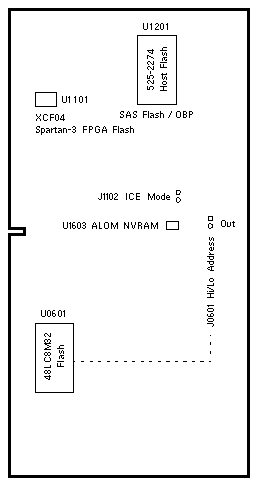

Bottom Side View

Additional Information & Views

Sun Fire V445 Codename: Boston

Notes

1. Use the showsc version -v command to view the following firmware revisions:
   sc> showsc version -v
   ALOM-CMT 1.0.3
   VBSC 1.0.1
2. Use the showhost command to view the following firmware revisions:
   sc> showhost
   Reset V1.0.0
   Hypervisor 1.0.1
   OBP 4.19.0
   MPT SAS FCode Version 1.00.37
   Integrated POST 4.19.2

References

1. Sun Fire V445 Server Documentation.
2. Sun Fire V445 Server Product Note Supplement, 819-7846.
