Service Processor

501-7998 511-1493 511-1519
FAB 270-7998
ILOM 525-2587
OBP 525-2586
IDPROM 525-2588		 FAB 270-7998
ILOM 525-2896
OBP 525-2895
IDPROM 525-2588		 FAB 270-7998
ILOM 525-2587
OBP 525-2586
IDPROM 525-2588

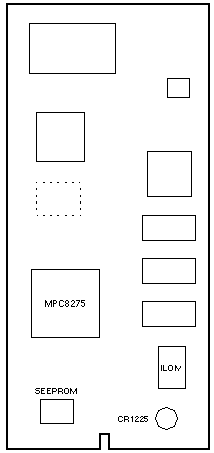

Top Side View
Bottom Side View

Netra T6340 Codename: Scottsdale-LP
Sun Blade T6340 Codename: Scottsdale

Notes

  1. The minimum Sun Fire T6340 operating system is Solaris 10 4/08.
  2. Use the showsc version -v and showhost commands to view firmware revisions.
  3. The 511-1493 was released with System Firmware 7.2.2.e in July 2009. (WO_41595)

References

  1. Sun Blade T6340 Server Module Documentation.
  2. Sun Integrated Lights Out Manager (ILOM) 2.0 Documentation.
  3. Sun Netra T6340 Server Module Documentation.
