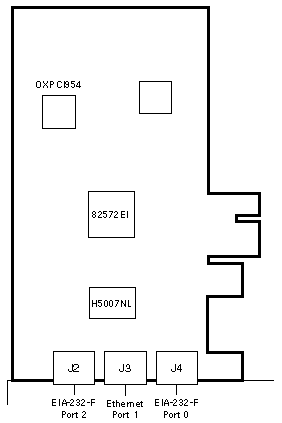

Cluster Heartbeat Card (Clustron2)

511-1496-04	542-0298
Heartbeat Card July 2010	Heartbeat Card Assy/FRU 511-1496-04 EMI Gasket 541-4350
511-1496-05	7056175
Heartbeat Card September 2012	Heartbeat Card Assy/FRU 511-1496-05 EMI Gasket 541-4350
7087050	7089470
Heartbeat Card October 2014	Heartbeat Card Assy/FRU 7087050 EMI Gasket 541-4350

Notes

1. The Clustron2 card is incompatible with the Clustron3 version.
2. When configuring a clustered environment, both systems in a clustered pair must have the same version of Clustron cards.
3. Sun_Part_No Fruid location 0x156a for 542-0298 is 5420298.
4. Sun_Part_Number Fruid location 0x1fa1 for 542-0298 is 5111496.
5. Sun_Part_No Fruid location 0x156a for 7056175 is 7056175.
6. Sun_Part_Number Fruid location 0x1fa1 for 7056175 is 5111496.
7. Sun_Part_No Fruid location 0x156a for 7089470 is 7089470.
8. Sun_Part_Number Fruid location 0x1fa1 for 7089470 is 7087050.
9. After 7056175 replaced 542-0298, it was determined that 511-1496-04
   was not built with components using exemptions 7(c)-III and 11(b).
   Refer to E0013186.
