Processor Module

Notes

1. The minimum Solaris operating system is Solaris 10 08/11.
2. The D220 is located at U13601 and U14201.
3. D220 rework was done by E0020803, E0021102, and M0010053.

Processor Module Notes

1. Do not leave a Processor Module slot empty for longer than one minute.
2. Replacement of Processor Module 0 requires power shut down.
3. Replacement of Processor Module 1 does not require power shut down.
4. A replacement Processor Module does not come on-line until power is cycled.

UltraSPARC Notes

1. Firmware 8.2.2.b is required to support UltraSPARC T4 Version 1.3.
2. UltraSPARC T4 Version 1.3 was added to 7051795 in February 2013. (E0014706)
3. UltraSPARC T4 Version 1.3 was added to 7048833 in February 2013. (E0013905)

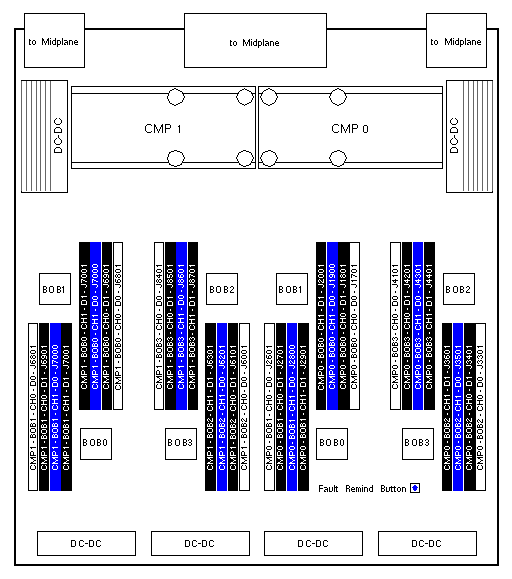

Memory Installation Notes

1. Install the first sixteen DIMMs in the blue and white CMP0 and CMP1 DIMM0 slots.
2. Install the second eight DIMMs in the black CMP1 DIMM1 slots.
3. Install the last eight DIMMs in the black CMP0 DIMM1 slots.
4. Install Dimm Filler 350-1288 in all unused DIMM slots.

References

1. SPARC T4-4 Server Product Notes
2. SPARC T4-4 Server Installation Guide
3. SPARC T4-4 Server Service Manual
