2-Slot SAS Backplane

No Sun Part Number
41773000032

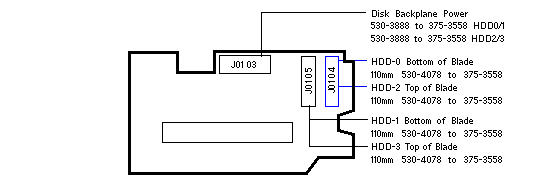

Internal X6240 View

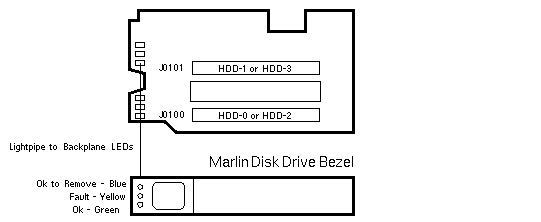

External X6240 View

Sun Blade X6240 Codename: Gemini+

Sun Blade X6240 Notes

  1. The Disk Backplane has no Sun part number.
  2. Cables 530-3888 and 530-4078 are not FRUs.
  3. Sun Blade T6300 Cable Kit 541-2491 includes Backplane Power Cable 530-3888.
