3-Slot Centerplane

<a href="../../Systems/SupportHeaders/BKPL_SunFire_E4900_Cntrpln.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-6773 F501-5877

Manufacturing Assembly
Untested 500-4405
FRUID 885-0220
Programmed ID Board FRU Assembly
Untested 500-4405
FRUID 806-6328
Unprogrammed ID Board

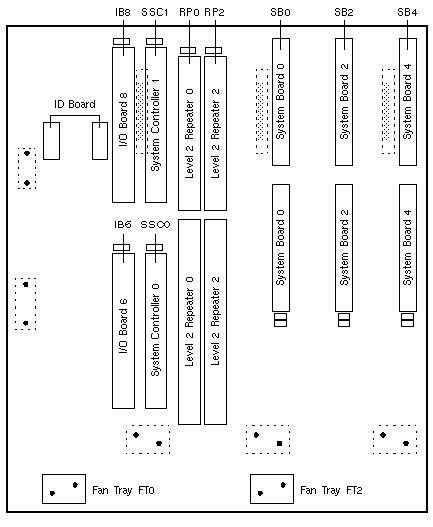

Front View

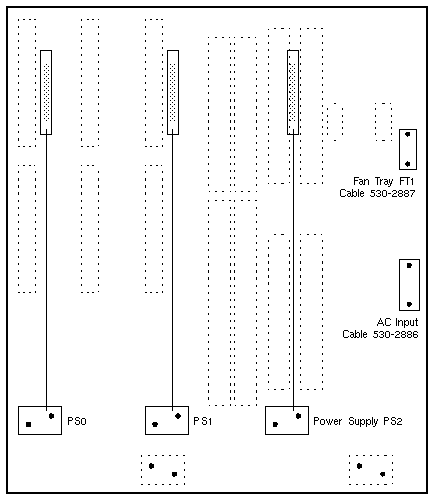

Rear View

Sun Fire E4900 Codename: Amazon 4

Note:

3-Slot Centerplane F501-6775 with unprogrammed ID Board and FRUID 885-0220 is not a released part.
