18-Slot Centerplane

501-4936 501-6803 501-7341
DMX3 100-5733
AMX5 100-5873
June 2001		 DMX3 100-7847
AMX5 100-7848
April 2005		 DMX3 100-7847
AMX5 100-7848
April 2006

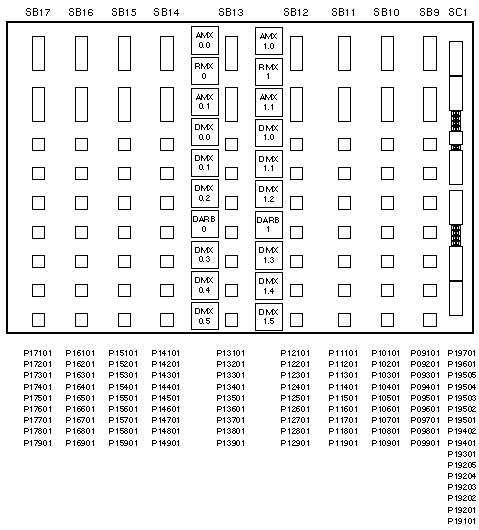

Secondary Component Side - Chassis Front

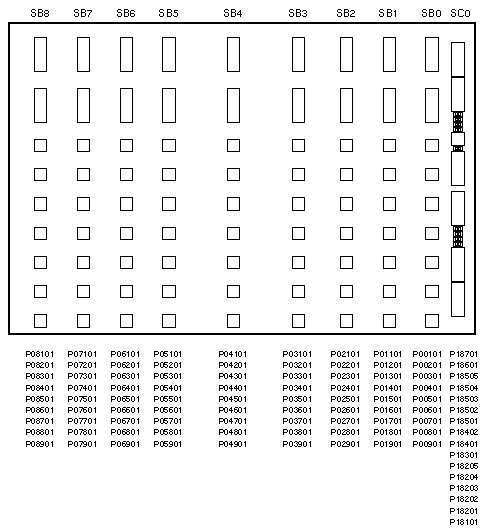

Primary Component Side - Chassis Rear

Notes

  1. Disconnect AC Input power before serviceing the Power Centerplane.
  2. Refer to the Service Manual for detailed removal and replacement procedures.

References

  1. Sun Fire 15K/12K Server Documentation.
  2. Sun Fire E25K/E20K Server Documentation.
