2-Slot SAS/SATA Backplane

<a href="../../Systems/SupportHeaders/BKPL_SunBladeX8450_2Slot_SAS_SATA.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-7870

FAB 270-7870

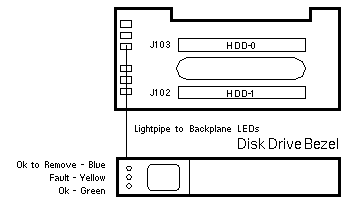

Internal Blade View

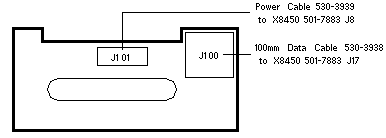

External Blade View

Sun Blade X8450 Codename: Scorpio

Notes

The 2-Slot Disk Backplane is not available as a FRU.
There is no Disk Backplane cable kit for the Sun Blade X8450.

Referencs

Sun Blade 8000 P Modular System Documentation.
