4-Slot Centerplane

<a href="../../Systems/SupportHeaders/BKPL_SFX4800_4Slot_Cntrpln.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

271-1096 371-4512 511-1057 511-1058 540-7640

Signal Link Board Busbar Assembly Power Distribution Board Centerplane Centerplane Assembly

271-1096 371-4512 7050689 7049500 7049504

Signal Link Board Busbar Assembly Power Distribution Board Centerplane Centerplane Assembly

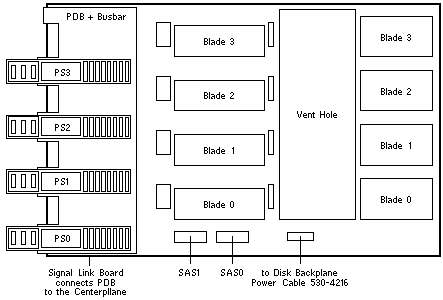

Front View

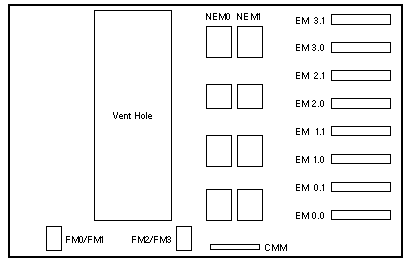

Rear View

References

Sun Fire X4800 Server Documentation.
Sun Server X2-8 / Sun Fire X4800 M2 Server Documentation.
