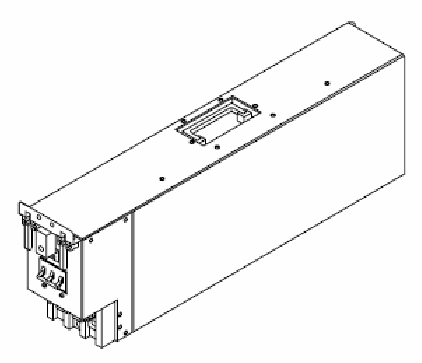

Three Phase Star AC Section D

Notes

1. Always connect power cords in the order shown on the ACSTPH label.
2. The ACSTPH label may not match the Installation Guide or Site Planning Guide.
3. ACSTPH 371-2389 power terminal orientation changed in August 2012.
   Affected units contain a red or yellow label and are labeled D0001392.
4. ACSTPH 371-2389 power terminal orientation is L1, L2, L3, N or N, L3, L2, L1.
5. ACSTPH 7060518 power terminal orientation is N, L3, L2, L1.

References

1. SPARC Enterprise M9000 Server Documentation.
2. Refer to M8000/M9000 Hardware Documentation for Product Notes for different XCP versions.
