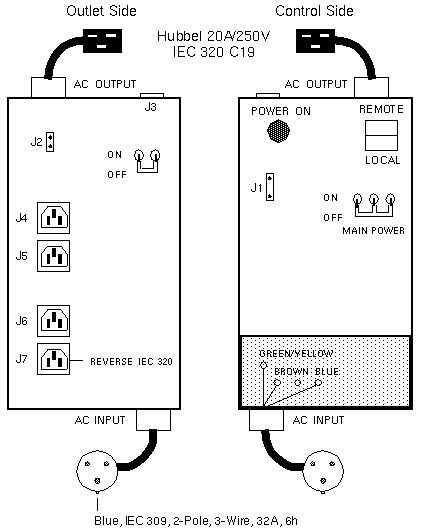

240 Volt AC Distribution Unit

Servers: SPARCcenter 2000, 2000E

300-1100
Sherwood Enterprises SEI-ACDB-NA

Notes

  1. Requires a Blue, IEC 309, 2-Pole, 3-Wire, 32A, 250V AC receptacle.
  2. Any conversion to the Data Center Cabinet, including replacement of the AC Power Plug or AC Distribution Unit, voids all safety agency approvals.
  3. The AC Power Cord is internally wired to the AC Line Filter.

Reference

SPARCcenter 2000 Installation Manual, 800-6975.
