AC Power Sequencer Operation

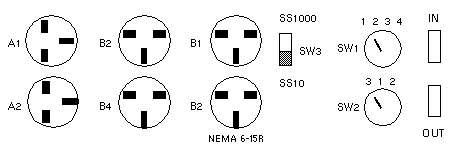

Switch SW1

Use SW1 to set the Slave Outputs when SW2 is set to 1.

Switch SW2

Use SW2 to set Switched=1, Remote=2, or Unswitched=3.

Switch SW3

Use SW3 to set the AC current detection level used when SW2 is set to Switched mode. Slave outputs are enabled when the AC current exceeds 200ma in the SS10 position or 600ma in the SS1000 position.

SW1 SW2 Master-1
Load		 Master-2
Load		 Slave-1
Output		 Slave-2
Output
1
1		 1
1		 On
Off		 x
x		 On
Off		 On
Off
2
2
2
2		 1
1
1
1		 On
On
Off
Off		 Off
On
On
Off		 On
On
Off
Off		 Off
On
On
Off
3
3
3		 1
1
1		 On
Off
Off		 x
On
Off		 On
On
Off		 On
On
Off
4
4
4		 1
1
1		 On
Off
Off		 x
On
Off		 On
Off
Off		 On
On
Off
1234
1234		 2
3		 N/A
N/A		 N/A
N/A		 x
On		 x
On
